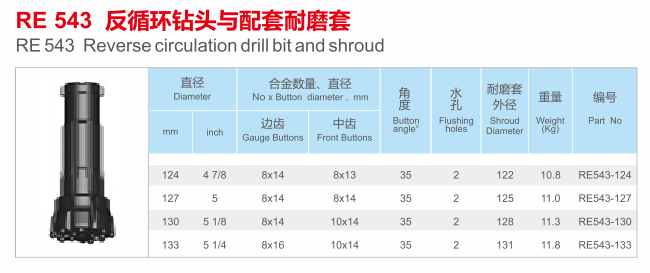

RC Drill Bit 133mm For RC DTH hammer RE543, hard formation

Description

Mainly used for deep exploration drilling, and stope ore controlling.

Main product features:

• No contamination

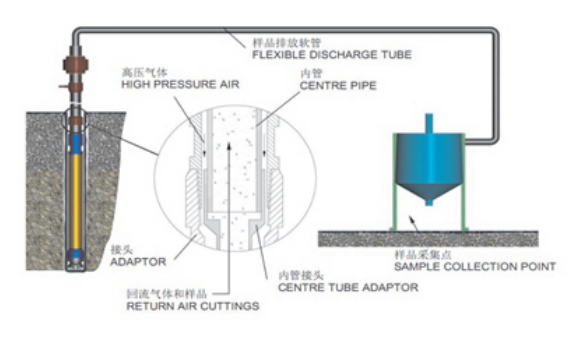

The R.C. System collects sample through the recovery holes in the face of the drill bit immediately as the cuttings or sample is formed. The drilled sample does not have to travel the length of the hammer where contamination and loss of sample takes place.

• Higher Production

In broken and fractured ground conditions, the R.C. will often out perform the conventional hammer in terms of penetration rates.

• Dry Sample

Even in certain water bearing stratas it is still possible to collect a dry sample because the cuttings (sample) are collected as they are formed through the face of the drill bit.

• Higher Sample Recovery

Because the sample is collected through the face of the drill bit there is no loss of sample when drilling through broken or fractured ground. And since the bit matched to the chuck size, there is very little bypass of sample and recovery rates of up to 98% are generally achievable.

Specification

Feature Advantage

1. Price commitment: in order to ensure the high reliability of products, raw material selection are using grapefruit brand products; under the same competitive conditions, and not to reduce product technical performance on the basis of sincerity at a favorable price to customers.

2. Quality commitment: product manufacturing and testing have quality records and inspection data; the performance of the product can withstand customer inspection.

3. Customer service: in order to create Super Diamond brand, enhance the visibility of enterprises,establish corporate image, we serve customers with the principle of "preferential prices, good service, reliable product quality" principle.

Working Theory

The appearance of the picture is different from that of the actual product, and the actual product is the standard.

      Changsha Chaojingang machinery manufacturing Co., Ltd is a modern high-tech enterprise, which is specialized in researching and manufacturing rock drilling machine and pneumatic tools. The company has rich experiences for scientific research and production. It produces prime property and quality rock drilling products by using high-quality raw materials, utilizing advanced production technology and imposing strict quality inspection. The products produced by Super Drill are sold well all over China and exported to over 20 countries, such as Korea, Brazil, Australia, and South Africa etc, high praised by users for its prime property and quality.

      Changsha Chaojingang is located in Liuyang, Changsha, Hunan, which is known as a beautiful fireworks city. It occupies 26600m2, and workshop has 22000m2.With more than 100 staffs, our company includes 26 specialized technicians and 8 senior engineers. And we are equipped with nearly 400 sets of advanced equipment required for manufacturing rock drilling machine and pneumatic tools. We have designed and manufactured the following products: normal circulation DTH hammers and bits, reverse circulation hammers and bits, various kinds of normal and reverse circulation hammers and bits, eccentric drilling equipment, symmetric drilling equipment, casting system, various kinds of threaded bits, shank adapters and coupling sleeves, new-style wells geothermal drilling rig, open-air blasthole drilling rig, all kinds of tool joints and drill pipe and spare parts for drill rig. Our products are widely used in earth-rock work, mining, well drilling, building engineer, geothermal drilling, civil project etc.

      With innovative spirit and development goal to provide solution for rock drilling technique, we always guide ourselves with service concept “focus on users” requirements and meet customers' need with prime quality, advanced technology and full service. Sincerely hope we could achieve win-win to all customers and create a better future.
